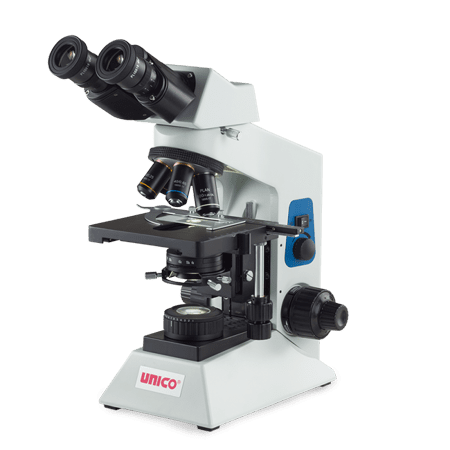

UNICO Advanced Microscope
Item#G504
$1,555.00
$1,745.00
Product Description
The G500 Series Advanced Microscopes are full-featured, versatile and scalable. Designed for users who applications require them to spend extended time viewing through the microscope. An LED illuminated series with options ranging from standard Brightfield, to Phase Contrast, Polarizing and Epi-Fluorescence.
G500's features a unique combination system of Graduated Iris Diaphragm mounted in the Condenser, paired with a Graduated Koehler Field Iris built into the Illuminator housing. These features allow maximum illumination control, perfect for viewing unstained specimens. The graduations also allow a multi-user practice to set both Irises at the optimal setting based on the specimen type being viewed insuring consistent viewing parameters.
CLICK HERE TO OPEM G504 MICROSCOPE BROCHURE
Features:
Specifications:
Size & Weight:
G500's features a unique combination system of Graduated Iris Diaphragm mounted in the Condenser, paired with a Graduated Koehler Field Iris built into the Illuminator housing. These features allow maximum illumination control, perfect for viewing unstained specimens. The graduations also allow a multi-user practice to set both Irises at the optimal setting based on the specimen type being viewed insuring consistent viewing parameters.
CLICK HERE TO OPEM G504 MICROSCOPE BROCHURE
Features:
- Seidentopf Binocular Head
- WF10X Paired Eyepieces
- 4X,10X,40XR,100XR DIN Plan Achromat Objectives
- Built-in Mechanical Stage with ABBE NA1.25 Condenser & Iris
- Kohler LED Illumination
Specifications:
- Head: Binocular
- Eyepiece: 10X WF(2)Hi-EP
- Objectives: 4,10,40,100X Plan
- Condenser: NA 1.25
- Diaphragm: Iris
- Stage: Mechanical
- Illumination: 3 Watt LED
- Focusing: Coaxial
Size & Weight:
- Actual Size: 16"H x 6"W x 12"D
- Net Weight: 14.5 lbs
