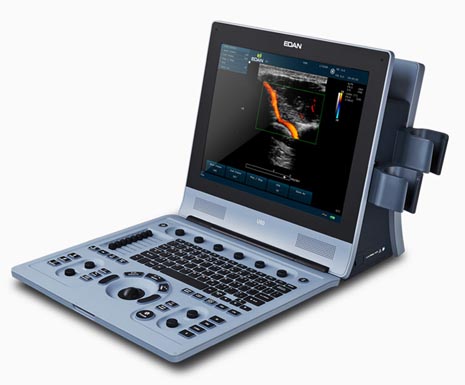

Edan U60 Color Diagnostic Ultrasound System from $6,559 with Transducer Included
Item#U60
$6,559.00
$7,500.00
Product Description
Clear, Compact, Comprehensive
Focus on Ergonomics and Applications: A superior general imaging desktop system
Edan's design philosophy with the U60 focused on providing clear imaging for confident diagnosis and procedure guidance, a compact, user centered design, and a comprehensive set of applications. See "Options" above for Main Unit plus Transducer Selection. Also, Transducers separately.
CLICK HERE TO OPEN U60 ULTRASOUND BROCHURE
Fashionable Appearance:
Advanced Imaging Technologies:
User-Friendly Operation:
Dedicated Features:
Comprehensive Clinical Applications:
Transducers:
C5-2b -Imaging Format: convex array -Number of Elements: 128 -Convex Radius: 60 mm -FOV58 -Bandwidth: 2.0-6.0MHz -Fundamental Frequency: 2.5 MHz, 3.5MHz, 4.0MHz -Harmonic Frequency: H5.0MHz, H6.0MHz -Doppler Frequency: 2.5MHz, 3.0MHz -Depth: 19-324mm -Frame Rate(18cm, Full of FOV)18cm: max 55 f/s -PW velocity PW: max 4.46m/s(60) -Applications: Abdomen, OB, Gynecology, Urology -Needle Guide Bracket: BGK-C5-2(16G, 18G, 20G, 22G)
C352UB -Imaging Format: convex array -Number of Elements: 128 -Convex Radius: 50 mm -FOV73 -Bandwidth: 2.0-6.0MHz -Fundamental Frequency: 2.5 MHz, 3.5MHz, 4.5MHz -Harmonic Frequency: H5.0MHz, H5.4MHz -Doppler Frequency: 2.5MHz, 3.0MHz -Depth: 19-324mm -Frame Rate(18cm, Full of FOV)18cm: max 58 f/s -PW velocity PW: max 3.01m/s(60) -Applications: Abdomen, OB, Gynecology, Urology -Needle Guide Bracket: BGK-R50UB(16G, 18G, 20G, 22G)
E612UB -Imaging Format: endocavity micro convex array -Number of elements: 128 -Convex Radius: 10 mm -FOV: 150 -Bandwidth: 4.0-9.4MHz -Fundamental Frequency: 4.0MHz, 6.5MHz, 7.5MHz -Harmonic Frequency: 9.0 MHz, 9.4MHz -Doppler Frequency: 5.0MHz, 6.0MHz -Depth: 19-127mm -Frame Rate(10cm, Full of FOV)10cm: max 31 f/s -PW velocity PW: max 1.56m/s(60) -Applications: OB, Gynecology, Urology -Needle Guide Bracket: BGK-CR10UA(16G)
Focus on Ergonomics and Applications: A superior general imaging desktop system
Edan's design philosophy with the U60 focused on providing clear imaging for confident diagnosis and procedure guidance, a compact, user centered design, and a comprehensive set of applications. See "Options" above for Main Unit plus Transducer Selection. Also, Transducers separately.
CLICK HERE TO OPEN U60 ULTRASOUND BROCHURE
Fashionable Appearance:
- Compact, lightweight design facilitates mobility
- Integrated battery enables operation anywhere
- Large 15' monitor for easy viewing
- Dual transducer ports to connect simultaneously
- Backlit, easy-to-use control panel
- Division of different functional areas
- Multiple peripheral ports for data transfer
Advanced Imaging Technologies:
- Tissue Harmonic Imaging for better details display
- Spatial Compounding Imaging to improve contrast resolution
- Speckle Reduction Imaging to reduce image noise and clutter
- Multi-Beam Technology to maintain high frame rates
User-Friendly Operation:
- Several keys for the whole procedure
- Backlit matrix keyboard for easy type
- Customizable user setting modification
- Quick image tools for optimization
- Large capacity data management
Dedicated Features:
- With pan zoom, needle guide, dual live, triplex, PW, CW, HPRF and many other features inside, the potable system can be used anywhere. Thoughtful elements simplify operation and enhance value
Comprehensive Clinical Applications:
- The U60 provides excellent detail, contrast resolution and image uniformity without sacrificing penetration
- Excellent color and Doppler sensitivity are perfect for general imaging application
Transducers:
C5-2b -Imaging Format: convex array -Number of Elements: 128 -Convex Radius: 60 mm -FOV58 -Bandwidth: 2.0-6.0MHz -Fundamental Frequency: 2.5 MHz, 3.5MHz, 4.0MHz -Harmonic Frequency: H5.0MHz, H6.0MHz -Doppler Frequency: 2.5MHz, 3.0MHz -Depth: 19-324mm -Frame Rate(18cm, Full of FOV)18cm: max 55 f/s -PW velocity PW: max 4.46m/s(60) -Applications: Abdomen, OB, Gynecology, Urology -Needle Guide Bracket: BGK-C5-2(16G, 18G, 20G, 22G)
C352UB -Imaging Format: convex array -Number of Elements: 128 -Convex Radius: 50 mm -FOV73 -Bandwidth: 2.0-6.0MHz -Fundamental Frequency: 2.5 MHz, 3.5MHz, 4.5MHz -Harmonic Frequency: H5.0MHz, H5.4MHz -Doppler Frequency: 2.5MHz, 3.0MHz -Depth: 19-324mm -Frame Rate(18cm, Full of FOV)18cm: max 58 f/s -PW velocity PW: max 3.01m/s(60) -Applications: Abdomen, OB, Gynecology, Urology -Needle Guide Bracket: BGK-R50UB(16G, 18G, 20G, 22G)
E612UB -Imaging Format: endocavity micro convex array -Number of elements: 128 -Convex Radius: 10 mm -FOV: 150 -Bandwidth: 4.0-9.4MHz -Fundamental Frequency: 4.0MHz, 6.5MHz, 7.5MHz -Harmonic Frequency: 9.0 MHz, 9.4MHz -Doppler Frequency: 5.0MHz, 6.0MHz -Depth: 19-127mm -Frame Rate(10cm, Full of FOV)10cm: max 31 f/s -PW velocity PW: max 1.56m/s(60) -Applications: OB, Gynecology, Urology -Needle Guide Bracket: BGK-CR10UA(16G)
